Products Description

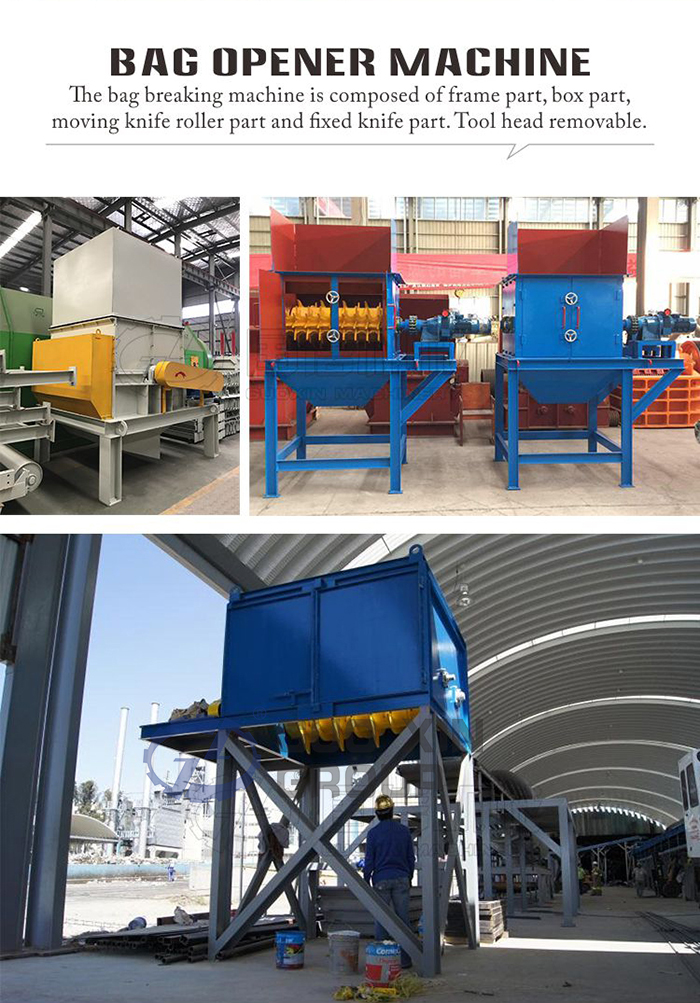

Waste Bag Breaker Machine
How Does an Automatic Waste Bag Opener Machine Work?
- The bag opener (bag breaker) is the critical first stage in any municipal solid waste (MSW) sorting line. to prepare waste for downstream separation equipment. Designed to replace hazardous manual bag cutting, our equipment ensures a >95% bag-breaking rate while keeping recyclables like glass and PET bottles intact for downstream recovery.

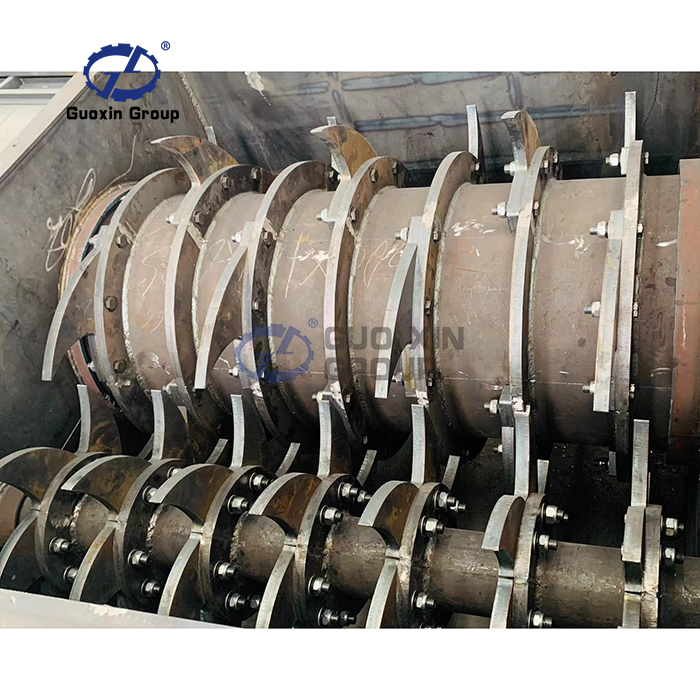

- Through the rotation between the movable and fixed knives, a working gap is maintained to prevent the rotating knife from colliding with the fixed knife, and the bagged garbage is broken to separate the garbage from the plastic bag.
- When the external force is greater than the spring thrust, the gap between the fixed knife and the movable knife will increase accordingly to ensure normal work.
- By utilizing dual-rotor blades rotating at differential speeds, our bag opener handles everything from standard household garbage bags to heavy-duty woven industrial sacks, ensuring a consistent material flow into your Trommel Screens and Air Separators.
Optimized as an Advanced Plastic Bag Opener for MSW Lines
In modern municipal waste sorting, over 80% of household garbage is wrapped in tightly knotted plastic films. Guoxin’s plastic bag opener utilizes a non-shredding, high-torque tearing mechanism. The rotation between the dynamic and static knives creates a precise working gap, ensuring that even thin, stretchable plastic bags are cleanly opened without wrapping around the shaft or chopping the valuable recyclables inside into unrecoverable pieces.
What makes Guoxin’s bag-breaking technology different from others?
-
- Anti-Wrapping Technology: Specially designed blade geometry and PLC-controlled auto-reverse system prevent film and long fibers from tangling around the rotor.
- High Liberation Rate (>95%): Opens bags within bags without shredding the content, ensuring recyclables (PET/Glass) remain intact for downstream recovery.
- VFD Speed Control: Adjustable rotor speeds enable processing of both lightweight household waste and heavy industrial bagged materials.
- High rotation speed, large processing capacity (up to 30 t/h), higher than manual sorting or drum breakers, Extended blade design, capable of breaking medium and large bags, Bag breaking rate >95%.
- Large-capacity feeding hopper, uniform discharge
- compactness, for installation in existing sorting systems, Opening packages that are inside other packages
- PLC monitoring for blockages and jams, automatic reverse rotation, and stop
- powerful design with a long service life, Easy maintenance due to quick access to the main work units, Customizable blades based on waste composition.

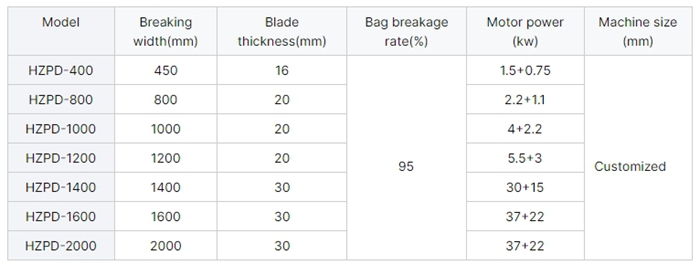

Technical Specifications of Guoxin Waste Bag Opener Machine
To meet different throughput requirements for municipal solid waste (MSW) plants, Guoxin offers heavy-duty automatic bag opener machines with customizable configurations. Below are the standard technical parameters of our industrial bag breaker machine series:
| Model | Throughput (TPH) | Rotor Diameter (mm) | Driving Power (kW) | Machine Weight (Tons) | Automation Level |
| GX-BO1200 | 10 – 20 TPH | 1,200 mm | 30 – 45 kW | ~ 8.5 Tons | Full PLC Automatic |
| GX-BO1500 | 20 – 40 TPH | 1,500 mm | 45 – 75 kW | ~ 12.0 Tons | Full PLC Automatic |
| GX-BO1800 | 40 – 60 TPH | 1,800 mm | 75 – 110 kW | ~ 16.5 Tons | Full PLC Automatic |
(Note: The above specifications of our waste bag opener machine can be customized based on your local waste density and moisture content.)
Applications of Waste Bag Openers
Bag openers are widely used across various waste-processing facilities.
Typical applications include:
- Municipal solid waste sorting plants: Opening and emptying household waste bags for sorting and recycling.
- Industrial Waste Processing: Handling large volumes of bagged industrial waste, such as packaging materials and production scraps.
- Recycling facilities handling packaged waste: Preparing bagged recyclables for further processing and separation.
- RDF production plants
- Composting Operations: Opening bags of organic waste for composting processes.
- Hazardous Waste Management: Safely opening and processing bags of hazardous materials to ensure proper disposal.
- Commercial and industrial waste sorting systems
These machines ensure that bagged waste materials can be effectively separated by downstream equipment such as screens, air separators, and optical sorters.
-
Scenario A: 200 TPD MSW Sorting Plant in Rayong, Thailand
-
Scenario B: Landfill Mining and MSW Sorting Project: 300 TPD Waste-to-Energy Integration in Jakarta
Bag opener machines are commonly used as the first processing step in a turnkey MSW sorting plant. Their primary function is to open waste bags without excessive shredding, allowing downstream sorting equipment to operate more efficiently.
In integrated MSW sorting solutions, bag openers are selected based on waste characteristics, throughput requirements, and plant layout, ensuring smooth material flow and improved sorting performance throughout the entire system.
Typical Bag Opening Process in MSW Sorting Plants
In municipal solid waste sorting plants, bag openers are usually installed at the beginning of the processing line to open plastic garbage bags before separation.
A typical bag opening process includes:
1. Waste feeding conveyor transporting mixed waste
2. Automatic bag opener tearing plastic garbage bags
3. Material spreading onto the sorting conveyor
4. Screening equipment separating organic fractions
5. Magnetic separator removing ferrous metals
By opening the bags at an early stage, the waste can be evenly distributed across the sorting system, which improves separation efficiency and recovery rates.
After opening the bags, the next critical step is density separation. View our [Air Density Separator] for high-purity plastic recovery.
FAQ
Q: Does the bag opener shred the recyclables inside?
A: No. Unlike a standard shredder, our bag opener uses a “tearing” action at low speeds. This ensures that plastic bags are opened while valuable items like glass bottles or aluminum cans remain largely intact for easier sorting.
Q: How often do the blades need replacement?
A: Our blades are made from high-wear-resistant alloy steel. Depending on the waste composition (abrasiveness), a typical set of blades lasts 18-24 months under standard 8-hour shift operations.
Q: Can it handle “bags within bags”?
A: Yes. The dual-rotor differential speed design is specifically effective at liberating small bags nested inside larger garbage bags, ensuring a high liberation rate.
Q: What is the difference between a bag breaker machine and a traditional waste shredder?
A: A traditional shredder uses high-speed sharp blades to cut everything into small pieces, which ruins recyclable glass and paper. In contrast, a Guoxin bag breaker operates at a low speed with high torque, focusing solely on opening and freeing the contents from the bags, achieving a >95% liberation rate while preserving material integrity.
Q: Can this bag open machine be integrated into existing sorting lines?
A: Yes, absolutely. Our bag open machine features a compact and modular design. It can be easily retrofitted into your current MSW plant layout, positioned directly after the feeding conveyor and right before the trommel screens or air density separators.
