Description

Products Description

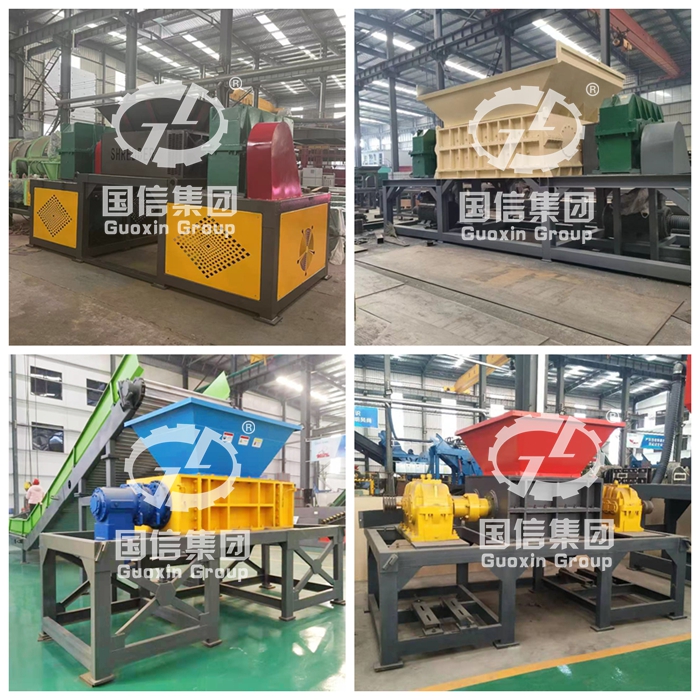

The Introduction Of Waste Shredder Machine

The shredder machine is a highly efficient industrial equipment. It can shred different kinds of materials. Such as various containers, plastic, waste metal, packing boxes, wood, waste tires, etc. Widely used in waste treatment, waste recycling, and waste reuse fields.

Components :

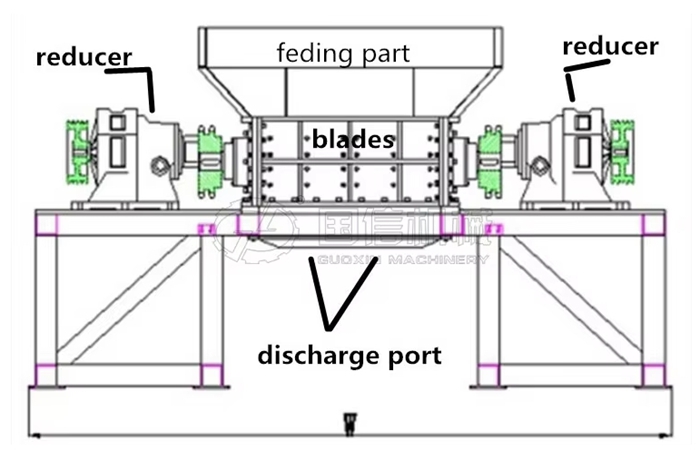

The waste shredder machine mainly consists of a hopper, crushing box, knife, frame, Transmission parts, control system, feeding and discharge conveyor, etc.

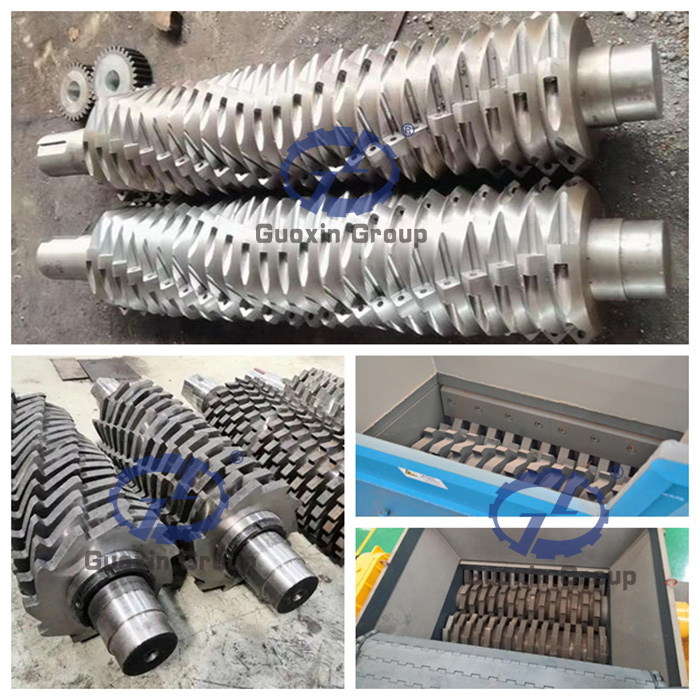

Double-shaft shredder blades — number, diameter, and thickness — can be customized based on the type of material and discharge size.

Working Principle:

1. The material is transported to the feeding port by the feeding conveyor. We can customize the shredder feed size according to the material size and shape.

2 . Then the material enters the shredding chamber, which contains a set of rotating cutting blades and a gear. These blades and gears cooperate with each other to shred and tear the material. Finally, shredding the material to the required size.

4. The shredded material falls freely through the discharge port and is transported out through the discharge conveyor.

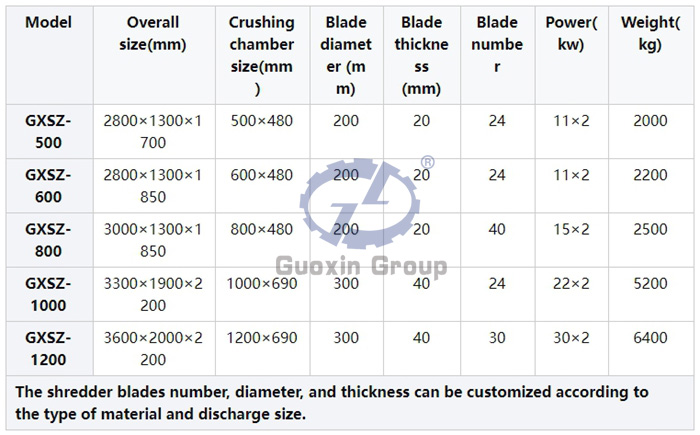

Parameter:

Advantages

1. The moving blade has high quality, so it has high crushing efficiency. The blade is strong and lasts a long time.

2. The waste shredder machine crushes evenly and works smoothly, it has low noise, overload protection, large feeding port.

3. The machine is easy to adjust, has low maintenance costs, is economical, and durable.

As a leading solid waste disposal machine manufacturer, we have a full range of waste sorting machines, charcoal making machines, double-shaft shredders, coconut husk processing machines, and all types of dryer machines. According to your materials, design the whole charcoal or RDF processing lines. Our products are widely applied and highly recommended all over the world.
