Products Description
Introduction of Waste RDF Briquette Press Machine
The RDF briquette press machine can press agricultural and forestry wastes,industrial solid waste into RDF briquettes by high-speed compression.Increase the proportion of biomass, extend the burning time, and facilitate storage and transportation.

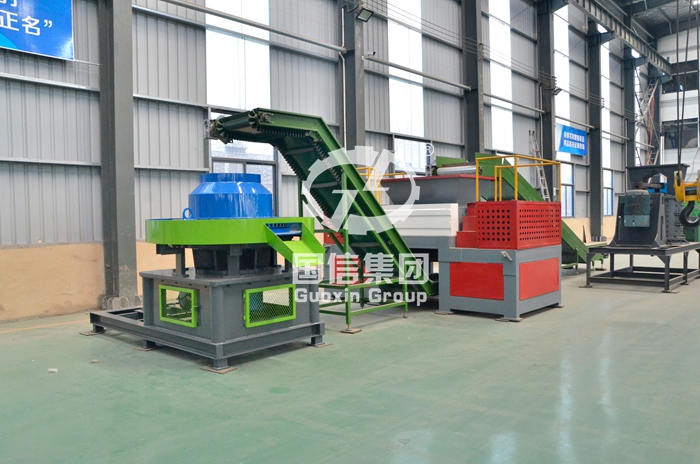

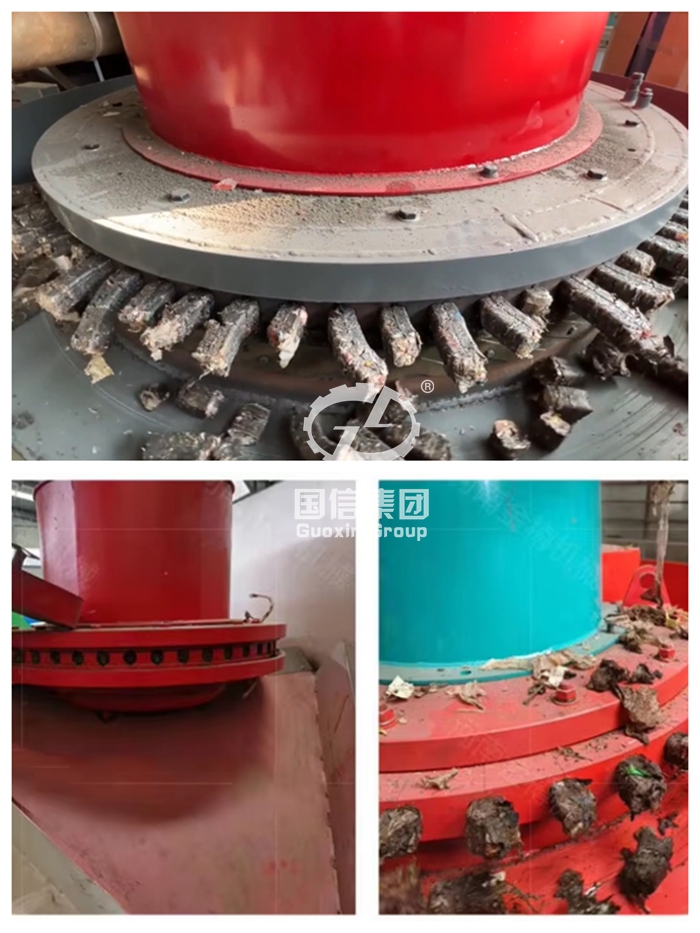

The machine is consisted of forming system,outlet,heating ring and control cabinet.The finished cube briquette is easy to storage and transportation.Widey used for heating stove,power plant and biogas fermentation.The raw mateirals can be waste solid waste,biomass,wood sawdust,garbage derived fuel,waste paper,cow dung manure,paper,waste clothes.etc.

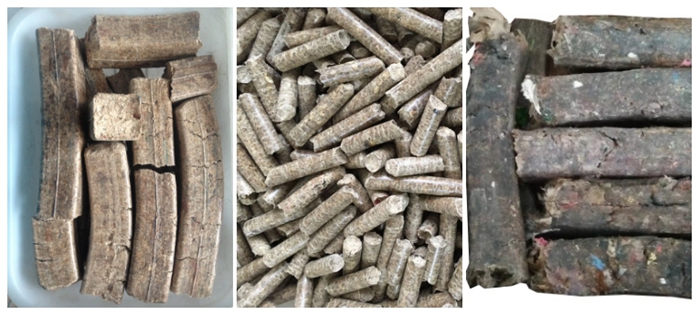

The finished briquette shape can be shape or round. The calorific value of the formed fuel rod is as high as 5000kcal/kg, and it has the characteristics of high density, stable calorific value, easy transportation, easy storage, low pollution, and low emission of toxic substances.
The produced RDF particles have a diameter of 30mm, a length of 50mm, and a moisture content of about 13%, and are widely used in waste power plants, cement plants, and boiler plants to prepare fuel
The Process Of Waste RDF Briquette Press Machine
The preparation process of domestic waste(RDF) derived fuel production line generally includes four steps: Coarse crushing,Sorting,Fine crushing,Drying and molding.The refuse is first crushed by a coarse crusher, and then incombustible is separated from the combustible by sorting equipment such as magnetic separation, butterfly screen, drum screen, spring screen, and air separator, and air separator, and the
combustible goes into a fine crusher for secondary crushing, after the broken material into the dryer, the moisture will be up to10%, after drying fuel into the high-pressure RDF Briquette machine compression molding.
Specification Of Waste RDF Briquette Press Machine
Cooperative Client
Guoxin Group is a research and development, production, sales as one of RDF Briquette Press Machine manufacturers, our production of are widely used in the waste sorting industry, waste resource recycling industry, and with high quality and excellent service to win the wide praise of customers, the equipment is exported to more than 90 countries and regions
Henan Guoxin Machinery Manufacturing Co., Ltd. was established in 1999 and is a supplier of Waste RDF Briquette Press Machine, waste RDF Briquetting Machine, and waste RDF Briquetting making Machine,Garbage RDF Briquetting making equipment Guoxin Factory adheres to customer first, machine quality first, and 60% of employees have university degrees. We have exported to over 90 countries, including the United States, Europe, Russia, India, Brazil, Nigeria, and more.
Technical parameter
