Automatic waste sorting machines are key equipment for urban waste management in today’s rapidly developing environmental protection industry, and they fully utilize advanced technologies such as deep learning. AI algorithms, robot control, and multi-sensor fusion to achieve precise and efficient sorting of urban waste. They have become important technological equipment for waste resource utilization.
I. Core Components of an Automatic Waste Sorting Machine
1. Intelligent Sensing System: Utilizing computer vision to scan rapidly moving objects, this system couples together recognition sensor systems such as CCD vision, laser vision, and near-infrared vision to comprehensively judge the external characteristics (color, shape, texture, etc.) and internal characteristics (material) of the target object, achieving precise waste location and subdivision.
2. AI Decision-Making Brain: The built-in artificial intelligence algorithm trains the robot using massive amounts of image data from the cloud.
3. Intelligent Actuator: The robotic arm/hand accurately grabs the materials to be recycled from the conveyor belt and places them into the corresponding sorting bins.
The sorting frequency can reach over 80 times per minute, and the daily operating time can reach 22-24 hours, far exceeding the efficiency of manual sorting.
4. Data Closed-Loop System: After sorting, the equipment returns relevant data to the cloud, enabling data sharing and remote intelligent improvement with intelligent sorting equipment deployed in various locations, forming a continuously optimized learning network.

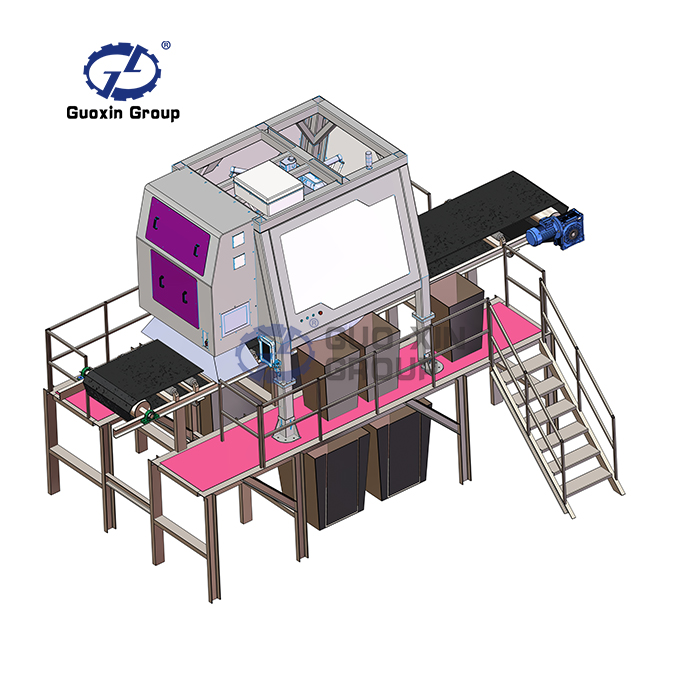

Automatic waste sorting machine
II. Automatic Sorting Process
The workflow of an automatic waste sorting machine typically includes the following steps:
1. Preliminary Shredding and Pre-treatment: A coarse shredder performs preliminary shredding of the waste, compressing large pieces.
2. Multi-stage Sorting: The preliminarily crushed waste is air-separated according to gravity to separate heavy and light materials; heavy materials are separated into strong and weak magnetic materials by a magnetic separator; weakly magnetic materials are screened; waste on the screen enters an aluminum separator, where eddy current separation is used to recover metallic aluminum; the remaining materials are separated into inorganic and organic materials using a bouncing device.
3. Intelligent Identification and Sorting: For complex materials, artificial intelligence identification technology is used. Through visual scanning and deep learning, specific types of waste are identified, and a robotic arm/hand precisely grasps and sorts them.
4. Resource Recovery: Sorted recyclable materials are compressed and packaged before being transported to downstream recycling plants, achieving resource recycling.
III. Advantages of the Automatic Waste Sorting Machine
1. High Sorting Efficiency: Automated sorting systems can maintain a sorting efficiency of 85 to 95 times per minute. Domestic intelligent sorting systems typically operate at speeds of 2000-6000 times per hour, a level of efficiency unattainable by ordinary workers.
Intelligent sorting is 6-8 times more efficient than manual sorting.
2. Strong Environmental Adaptability: Compared to manual sorting, automated sorting equipment is more suitable for harsh environments such as high temperatures, humidity, and high corrosiveness, as well as environments requiring high sorting accuracy and consistency.
3. High Accuracy: Automated sorting systems achieve an accuracy rate of over 90%, with advanced systems reaching up to 98%.
4. Economic Benefits: The cost of manually sorting recyclable materials is approximately 260 yuan/ton, while the cost of intelligent robot sorting is only 99 yuan/ton.
The cost of these machines can be recovered in less than two years. For example, a smart sorting facility with a daily processing capacity of 150 tons can generate approximately 18 million yuan in annual revenue.
5. Advantages in Resource Utilization: Smart waste sorting equipment separates low-value recyclables and a small amount of high-value recyclables from waste for resource utilization, significantly reducing the volume of waste returned to landfills and incinerated.
The technological development of automated waste sorting machines will fundamentally change traditional waste disposal methods, driving the environmental protection industry to shift from mechanical and physical processing models to digital, intelligent, and networked processing models, contributing to the construction of a resource-recycling society and sustainable development.
Guoxin Machinery through continuous technological innovation and the expansion of application scenarios, automated waste sorting machines will inevitably become an indispensable key piece of equipment in urban environmental management, realizing a green circular economy model that turns waste into treasure.
