Products Description
Introduction Of Construction Waste Crusher
Jaw crusher, also known as stone crusher, is widely used in mining, metallurgy, building materials, highway, railway, construction waste and other industries. For all kinds of ore, rock large materials of medium size crushing, crushing compressive strength in 147~245MPa has coarse, medium and fine.

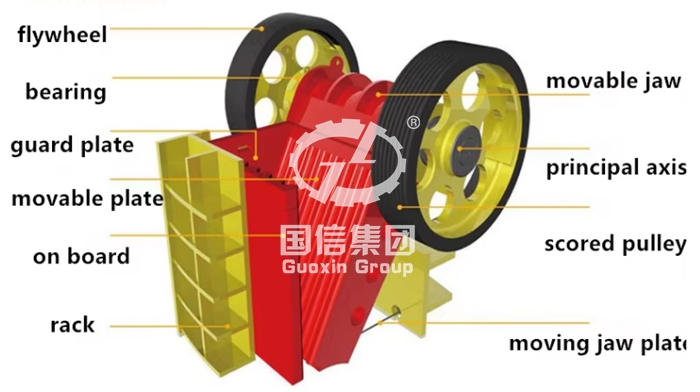

Structure Of Construction Waste Crusher
Jaw crusher structure is mainly include frame, eccentric shaft rotation part, the crushing cavity working part, insurance device, discharge port adjusting device.
Parameter Of Construction Waste Crusher
The Working Principle Of Construction Waste Crusher
The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the toggle plate and the movable jaw are clamped. The angle becomes larger, thereby pushing the movable jaw plate to approach the fixed jaw plate, and at the same time, the material is crushed or chopped to achieve the purpose of crushing.
The Advantages Of Construction Waste Crusher
1.High capacity and energy saving: no dead zone, feeding and crushing efficiency is greatly improved.
2.Good performance and good stability.
3. Safe, reliable and convenient, easy to maintenance.
4.Easy operation and maintenance, low operating costs.
Henan guoxin Machinery Manufacturing Co., Ltd. was established in 1999 and is a supplier of Construction waste crusher , Construction waste crusher machine, and Construction waste crusher equipment. flysun Factory adheres to customer first, machine quality first, and 60% of employees have university degrees. We have exported to over 90 countries, including the United States, Europe, Russia, India, Brazil, Nigeria, and more.
Technical parameter
