Products Description

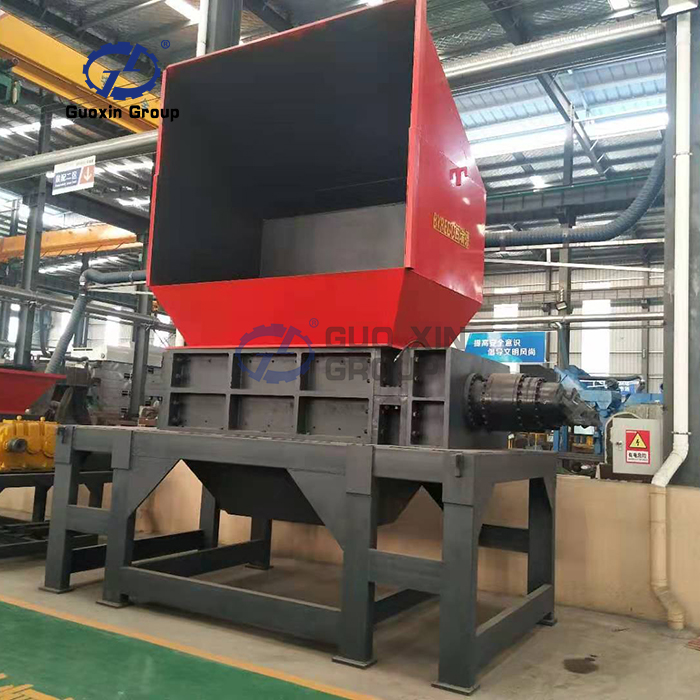

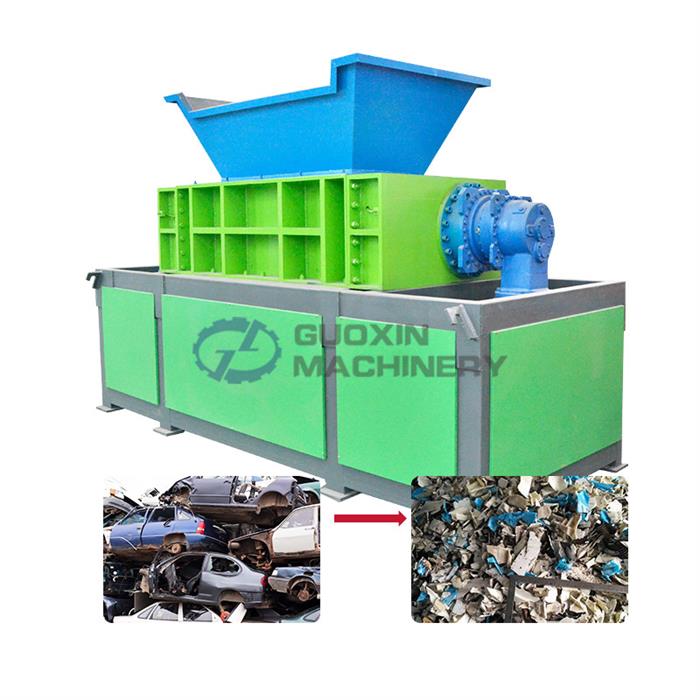

Introduction of the Car shell shredder machine
It is more than capable of shredding through the tougher materials, rendering them into a smaller, easier-to-manage shred size. It provides improved efficiency while minimizing your footprint, allowing you to diversify your business.
Components of the shredder machine
Reducer
The internal gear of the planetary reducer is carburized and quenched with 20CrMnTi, which has the characteristics of small volume, light weight, high bearing capacity, long service life, stable operation, low noise, large output torque, and high speed ratio.
Working Chamber
The box is processed by a high-precision CNC machining center and drilled as a whole to ensure the stable operation of the equipment under high load for a long time and prolong the service life of the transmission parts.

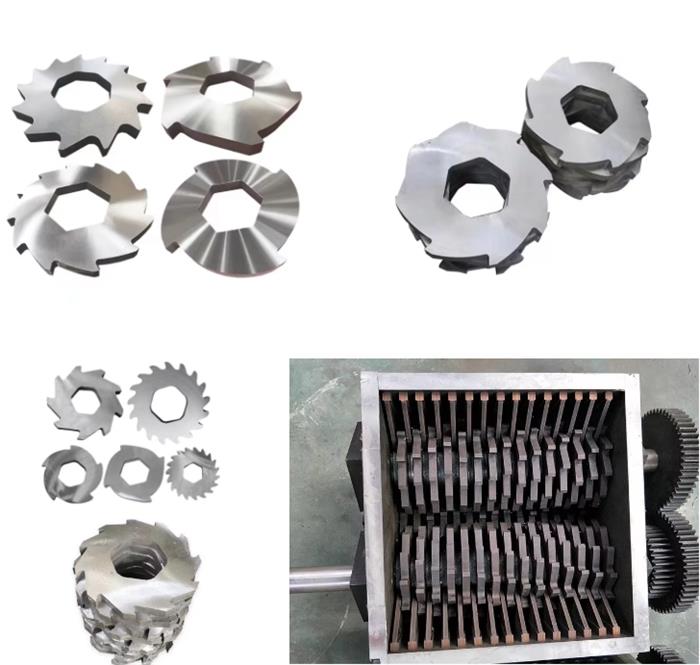

Blade
1 .Raw material is H13. After special heat treatment, the Rockwell hardness is 58-63HRC;
2. Knife edge groove design, cushion, and reduce the resistance during shearing;
3. Can repair and reuse under normal temperatures.
Main Shaft
High-strength alloy steel is used to improve the mechanical properties of the spindle after quenching and tempering. Surface nitriding treatment, surface hardness HRC55-58 after treatment, high spindle strength, easy to install the blade and spindle, ensuring good cooperation with the tool.
Bearing
Bearing with an adapter sleeve. It can be disassembled and reassembled according to customers’ needs, which is very convenient for customers to change blades while maintaining the bearings’ good mechanical properties.
Features and advantages:
1. Low speed, high torque rotor, cutting and shearing working principle suitable for both soft and hard materials;
2. Blades made of special alloy, different shapes, thicknesses, and cutting head quantity, providing the optimum solution for different materials.
3. Siemens, abb, weg…etc quality motors are available for different customers’ options
4. Schneider, chint, siements…etc, electrical components to ensure steady performance and realize machine 24-hour running, also the PLC system is optional to enable automatic reverse for overload protection and minimize blade damage.
5. An individual electrical control panel with PLC control system ensures the machine works properly and safely.
6. Detachable type cutting head on shredder blades, making the maintenance and replacement of wearing parts easier and resulting in much shorter maintenance time.
7. Low speed, lower noise, workable in a workshop and outdoors.
